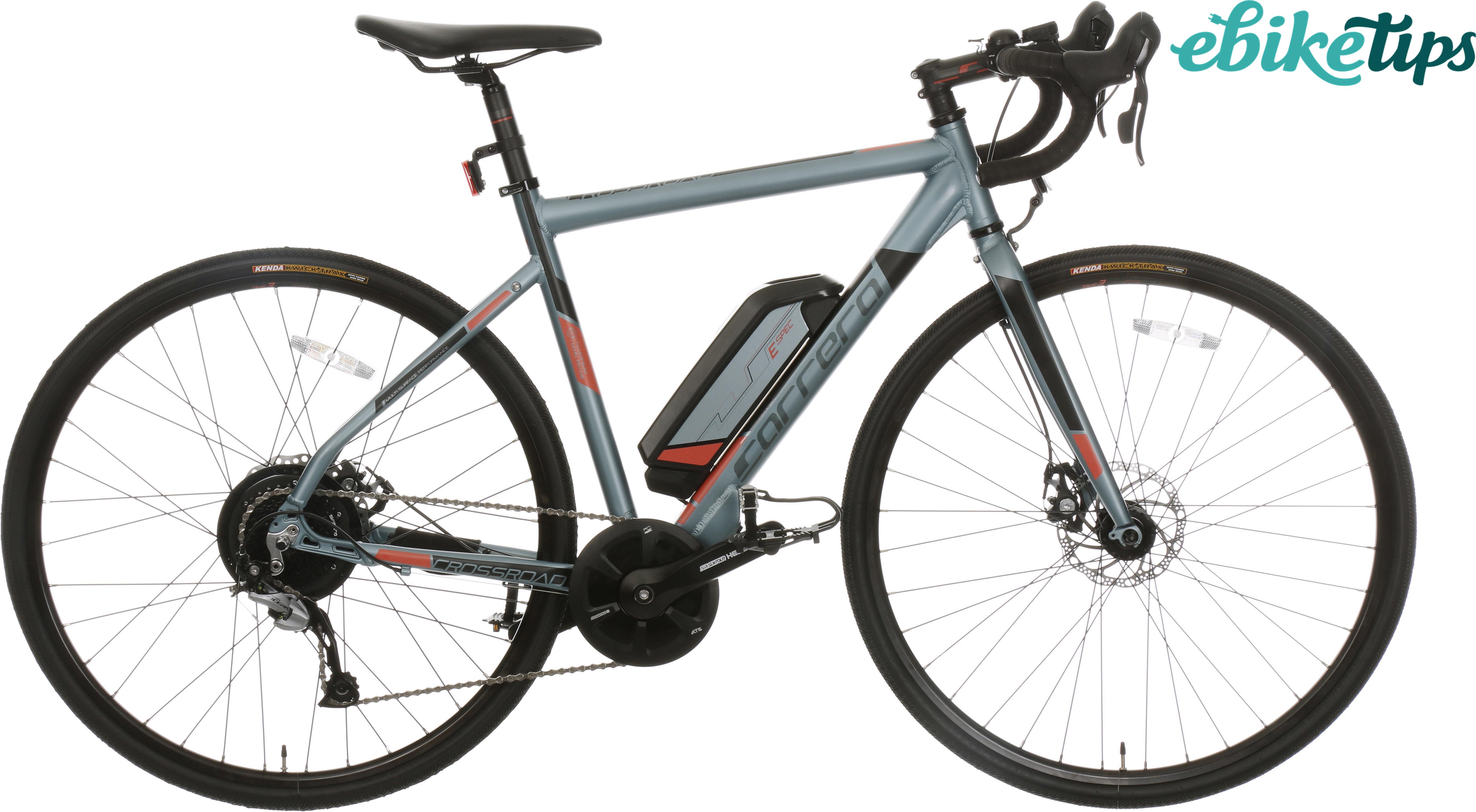

Carrera Crossroad Electric Road Bike - S, M, L Frames
203790
Shop now. Pay later. Always interest-free.
-
Add your favourites to basket
-
Select Clearpay at checkout
-
Log into or create your Clearpay account, instant approval decision
-
Your purchase will be split into 4 payments, payable every 2 weeks
Clearpay lends you a fixed amount of credit so you can pay for your purchase over 4 instalments, due every 2 weeks. Ensure you can make repayments on time. You must be 18+ and a permanent UK resident (excl Channel Islands). Clearpay charges a £6 late fee for each late instalment and a further £6 if it's still unpaid 7 days later. Late fees are capped at £6 for orders under £24 and the lower of £24 or 25% of the order value for orders over £24. Missed payments may affect your ability to use Clearpay in the future and your details may be passed onto a debt collection agency working on Clearpay's behalf. Clearpay is credit that is not regulated by the Financial Conduct Authority. T&Cs and other eligibility criteria apply at clearpay.co.uk/terms
Carrera Crossroad Electric Road Bike - S, M, L Frames
203790
- Max range: Up to 50 miles
- Motor Type: Suntour Rear Wheel Drive
- Approx Weight: 19.5kg
Carrera Crossroad Electric Road Bike - S, M, L Frames
- Removable Battery - Yes
- Maximum Range - Up To 40 Miles
- Recharge Time - 5-6 Hours
It’s 9 speed Shimano gears allows fast and efficient transitions between hills and flat roads and its alloy fork provides additional strength and control whilst riding the roads. Gliding along the roads at speed? Not a problem – this model is complimented with powerful Tektro Mechanical Disc brakes with 180mm rotors to ensure you always remain in control. Be rest assured, this model also comes with a 2-year warranty on all electrical components.
Motor:
This model boasts a powerful Suntour Performance 36V 250W electric motor system, seamlessly integrated into the rear wheel; providing reliable, high torque power (60NM) directly to the wheel – which will allow you to tackle the biggest hills with ease.
Battery:
A semi integrated Suntour STL battery is mounted onto the Crossroad’s frame, weight is balanced against the rear mounted hub motor providing an improved ride quality. With a capacity of 310Wh / 9Ah and a range of up to 40miles* per charge, the Crossroad is very capable of providing assistance for all riding conditions – whether than be a competitive race, work commute or leisurely ride with your local Cycling club – the Crossroad has you covered. To support the sophisticated motor and battery system, the Crossroad comes with a smart control system (BMS) that protects the battery from overheating, short circuiting or overcharging.
Display:
The electric motor of the Carrera Crossroad is controlled via a Suntour LED display. This allows you to choose from one of 3 assistance modes, depending on the level of support you require.
Frames & Components:
- Frame: Aluminium
- Gears: 9-speed Shimano Sora RD-R3000SS with Microshift SB-R490-R shifters
- Brakes: Tektro Mechanical Disc Brakes with 180mm rotors
- Wheels: 700c with Kenda K-1053 tyres
Learn more about the Carrera Crossroad Electric Road Bike inside the manuals available below:
Need some extra tips on how to care for your e-Bike? View Halfords guide to owning an e-Bike
Carrera Crossroad Electric Road Bike - Extra Info
- FREE build
- Unlimited lifetime safety checks
- Lifetime guarantee on frames and rigid forks
- Leisure E-Bike Cyclecare available
Carrera Electric Bike Size Guide
Mens Sizes
| Height (Inch) | Height (cm) | Frame Size |
|---|---|---|
| 5' 6" - 5' 10" | 168 - 178 | S (16") |
| 5' 9" - 6' 0" | 175 - 183 | M (18") |
| 5' 11" - 6' 3" | 180 - 191 | L (20") |
Mens Geometry Table
| Size | S (16") | M (18") | L (20") |
|---|---|---|---|
| ST (Seat tube) | 510mm | 540mm | 580mm |
| TT (Top tube) | 535mm | 555mm | 585mm |
| HT (Head tube) | 125mm | 145mm | 185mm |
| SA (Seat angle) | 74.5 degrees | 73 degrees | 72.5 degrees |
| HA (Head angle) | 72.5 degrees | 73.5 degrees | 73.5 degrees |
| BBD (Bottom Bracket Drop) | 66mm | 66mm | 66mm |
| Rake (Fork offset) | 45mm | 45mm | 45mm |
| RC (Chainstays) | 410mm | 410mm | 410mm |
| Stem | 90mm | 100mm | 110mm |
| Handlebars Width | 400mm | 420mm | 440mm |
| Seatpost Length | 350mm | 350mm | 350mm |
| Crank Length | 170mm | 172.5mm | 172.5mm |
| Stack | 548mm | 548mm | 586mm |
| Reach | 393mm | 393mm | 400mm |
