Boardman Mountain Bike Pro Full Suspension 27.5" - 16", 18", 19", 20" Frames
175285

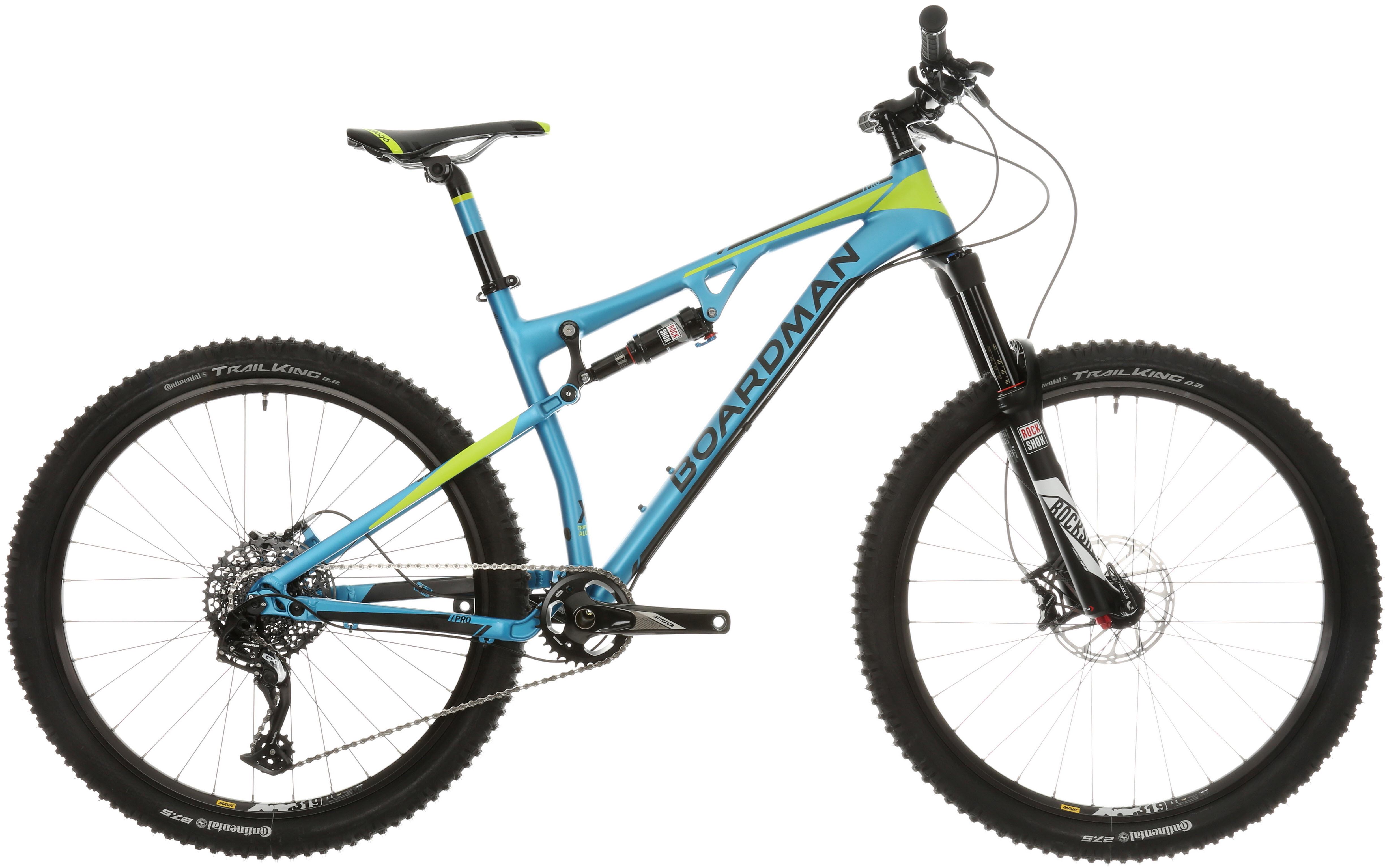

Boardman Mountain Bike Pro Full Suspension 27.5"
Aggressive trail riding is what the Boardman Mountain Bike Pro Full Suspension 27.5" was made for. With a silky smooth and controlled 140mm RockShox Pike RC fork and the highly adjustable RockShox Monarch RT rear shock, the MTB Pro FS can be dialled to your preferred trail and riding style. The frame and fork is complemented by the fantastic SRAM GX 1x11 groupset and supremely powerful SRAM Guide 4 piston hydraulic disc brakes. All this adds up to a bike that is stiff and lightweight with excellent handling, traction and pedalling dynamics for a peerless ride experience on any trail.- Frame: Lightweight triple butted X9 aluminium with 130mm RockShox Monarch RT rear shock featuring rebound and compression adjustment
- Forks: RockShox Pike RC 140mm suspension fork with rebound and compression adjustment
- Gears: SRAM GX 1x11 speed groupset offers a very wide gear range with no ratio cross over or duplication
- Brakes: SRAM Guide 4 piston hydraulic disc brakes for enhanced power, control and modulation
- Wheels: 27.5" Mavic XM319 aluminium rims with Continental Trail King tyres for great performance on all terrains
- Please note that pedals are included with this bike
Boardman Mountain Bike Pro Full Suspension 27.5" Extra Info
- FREE build
- Unlimited lifetime safety checks
- Lifetime guarantee on frames and rigid forks*
- Performance Hydraulic Cyclecare available
*Please see our T&C's here
Click here to find out more about the Boardman Bikes range
Boardman Mountain Bike Size Guide

Mens
Height (Inch) | Height (cm) | Frame Size |
---|---|---|
5' 3" - 5' 8" | 160 - 172 | Small |
5' 6" - 5' 11" | 167 - 180 | Medium |
5' 9" - 6'2" | 175 - 188 | Large |
6' 0" - 6' 5" | 183 - 195 | X Large |
Men's Geometry Table
Size | S | M | L | XL |
---|---|---|---|---|
Stack | 625mm | 625mm | 639mm | 648mm |
Reach | 407mm | 425mm | 441mm | 447mm |
Seat Tube | 410mm | 460mm | 483mm | 508mm |
TT Top Tube | 586mm | 610mm | 630mm | 645mm |
HT Head Tube | 100mm | 100mm | 115mm | 125mm |
Travel | 120mm | 120mm | 120mm | 120mm |
FO Fork Offset | 51mm | 51mm | 51mm | 51mm |
HA Head Angle | 68° | 68° | 68° | 68° |
SA Seat Angle | 74° | 73.5° | 73.5° | 73° |
CS Chain Stay | 435mm | 435mm | 435mm | 435mm |
BB Bottom Bracket Drop | 63mm | 63mm | 63mm | 63mm |
Crank Length | 170mm | 175mm | 175mm | 175mm |
Stem Length | 45mm | 45mm | 45mm | 45mm |
Handlebar Width | 720mm | 740mm | 740mm | 740mm |
Seatpost Length | 350mm | 350mm | 400mm | 400mm |
Womens
Height (Inch) | Height (cm) | Frame Size |
---|---|---|
5' 0" - 5' 5" | 152 - 165 | Small |
5' 3" - 5' 8" | 160 - 172 | Medium |
5' 6" - 5'11" | 167 - 180 | Large |
Women's Geometry Table
Size | S | M | L |
---|---|---|---|
Stack | 592mm | 592mm | 601mm |
Reach | 403mm | 416mm | 438mm |
Seat Tube | 390mm | 410mm | 432mm |
TT Top Tube | 573mm | 586mm | 610mm |
HT Head Tube | 110mm | 110mm | 120mm |
Travel | 140mm | 140mm | 140mm |
FO Fork Offset | 42mm | 42mm | 42mm |
HA Head Angle | 67° | 67° | 67° |
SA Seat Angle | 73.5° | 73.5° | 73° |
CS Chain Stay | 425mm | 425mm | 425mm |
BB Bottom Bracket Drop | 17mm | 17mm | 17mm |
Crank Length | 165mm | 170mm | 170mm |
Stem Length | 45mm | 45mm | 45mm |
Handlebar Width | 720mm | 720mm | 740mm |
Seatpost Length | 300mm | 350mm | 350mm |
